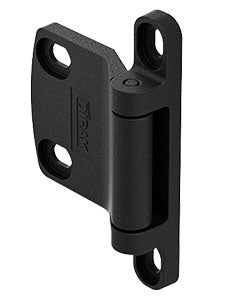

4-351 2D Hinge, adjustable Pr01 180° Short Version

4-351 2D Hinge, adjustable Pr01 180° Short Version

  • For nested doors.
  • 180° opening angle.
  • Hinge is visible.
  • RH and LH versions.
  • Height and width is adjustable ±2mm (0.079).
  • Pin in blind hole secured against knock out.
  • Materials: Frame-part and door-part - Aluminium, black. Bushings - PA, natur. Pin - Steel, zinc plated. Cover - PA, black.
4-351 2D Hinge, adjustable Pr01 180° Short Version drawing
For full datasheet see below.
Please contact us for large quantities.
View datasheet for 4-351 2D Hinge, adjustable Pr01 180° Short Version
